Product Model

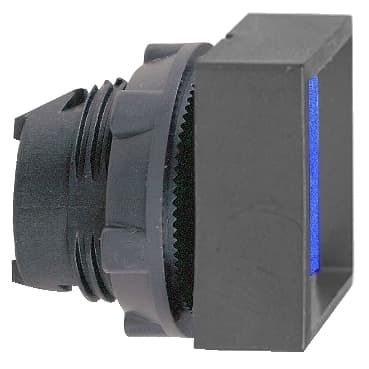

ZB5CA66
Selling Points
- 1Robust Design: The ZB5CA66 features a robust design with an IP66 rating, ensuring protection against dust, water, and vibration.
- 2Wide Operating Temperature: It operates in a wide range of temperatures from -40°C to 70°C, making it suitable for various industrial applications.
- 3Easy Installation: The pushbutton switch is designed for simple and quick installation, with a snap-fit assembly that fits into a standard 22mm cutout.
- 4High Guard Protection: It includes a high guard blue recessed head for enhanced operator safety and visibility.
- 5Durable Construction: Withstanding up to 5 million cycles, the ZB5CA66 offers exceptional mechanical durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB5 | Bezel material | Plastic |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Square | Type of operator | spring return |
Operator profile | Blue recessed, unmarked | Operator additional information | High guard |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.2 in (30 mm) |
CAD overall depth | 1.2 in (31 mm) | Net Weight | 0.026 lb(US) (0.012 kg) |
Mechanical durability | 5000000 cycles | Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs |
Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Overvoltage category | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
Product Certifications | BV<br />UL Listed<br />GL<br />DNV<br />LROS (Lloyds register of shipping)<br />CSA | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Specifications may be subject to change without notice
