Product Model

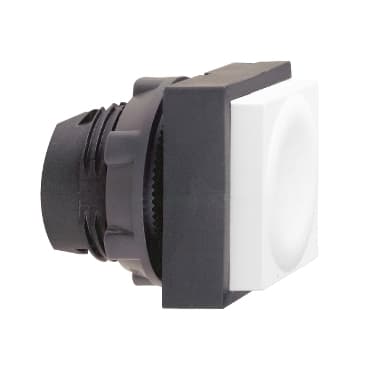

ZB5CL1
Selling Points
- 1Non-Illuminated Design: Ideal for applications requiring minimal visual indicators.
- 2Lead-Free/RoHS Compliant: Meets environmental regulations for lead-free components.
- 3Extended Square White Cap: Durable and visually distinct design.
- 4High Performance in Harsh Environments: Designed to withstand mechanical stress and environmental factors.
- 5Robust Construction: Built to last with nylon material ensuring long-lasting operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB5 | Bezel material | Dark grey plastic |
Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Square |
Type of operator | spring return | Operator profile | White projecting, unmarked |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.2 in (30 mm) |
CAD overall depth | 1.3 in (33 mm) | Net Weight | 0.046 lb(US) (0.021 kg) |
Mechanical durability | 5000000 cycles | Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs |
Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Overvoltage category | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
Standards | IEC 60947-1<br />UL 508<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-5-4<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | BV<br />LROS (Lloyds register of shipping)<br />UL Listed<br />CSA<br />GL<br />DNV |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Specifications may be subject to change without notice
