Product Model

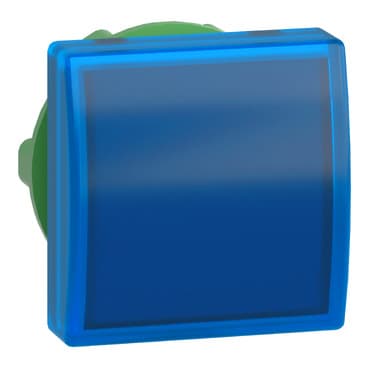

ZB5CV063
Selling Points
- 1Compatible with Ø22.5 mm and Ø22.3 mm diameters, ensuring accurate panel cut-outs.
- 2Connect via screw clamp terminals, plug-in connectors, or printed circuit board (PCB) for flexibility.
- 3Designed to withstand harsh environments with IP66, IP67, and IP68 ratings.
- 4Simple mounting process with anti-loosening system for screw clamp terminals.
- 5Meets international standards (IEC, UL, CCC, EAC) and marine certifications (BV, LROS, BDNV, GL).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for pilot light |
Product Compatibility | Universal LED | Device short name | ZB5 |
Bezel material | Dark grey plastic | Mounting diameter | 0.9 in (22 mm) |
Head type | Standard | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Square | cap/operator or lens colour | Blue |
Operator additional information | With plain lens | CAD overall width | 1.2 in (30 mm) |
CAD overall height | 1.2 in (30 mm) | CAD overall depth | 1.1 in (29 mm) |
Net Weight | 0.04 lb(US) (0.02 kg) | Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs |
Electrical composition code | P1 front mounting integral LED<br />P2 front mounting integral LED and transformer<br />PF1 front mounting integral LED<br />PR1 rear mounting integral LED | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Overvoltage category | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK05 conforming to IEC 50102 |
Standards | JIS C8201-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />JIS C8201-1 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
