schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB5CW133

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26069

In Stock
Last updated: 2025/4/25
View Specifications

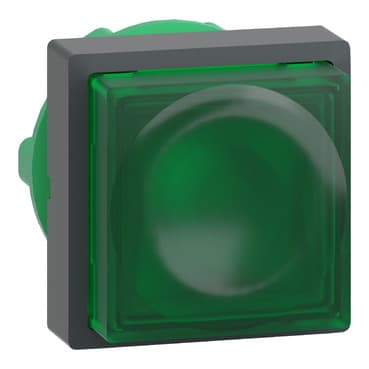

schneider ZB5CW133

Selling Points

  • 1Withstands 10 million cycles, ensuring long-lasting performance in demanding conditions.
  • 2Dust, water, and vibration-resistant, suitable for operation in harsh environments.
  • 3Green projecting illuminated button head for easy identification and control.
  • 4Snap-fit assembly for quick and simple installation on compatible pushbutton units.
  • 5Meets international standards like GB 14048.5, CSA C22.2 No 14, JIS C8201-5-1, and EN/IEC 60947-1.
Product Details
ZB5CW133
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for illuminated push-button
Device short name
ZB5
Product Compatibility
Universal LED
Bezel material
Dark grey plastic
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Head type
Standard
Shape of signaling unit head
Square
Type of operator
spring return
Operator profile
Green projecting, unmarked
Operator additional information
For insertion of legend
CAD overall width
1.2 in (30 mm)
CAD overall height
1.2 in (30 mm)
CAD overall depth
1.3 in (34 mm)
Net Weight
0.053 lb(US) (0.024 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
10000000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 2...5 cut-outs
Cap/operator or lens colour
Green
Marking
Unmarked
Electrical composition code
M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED
Device presentation
Basic element
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK05 conforming to EN 50102
Standards
GB 14048.5<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />UL 508<br />JIS C8201-1
Product Certifications
UL Listed<br />LROS (Lloyds register of shipping)<br />CSA<br />DNV<br />GL<br />BV
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
