Product Model

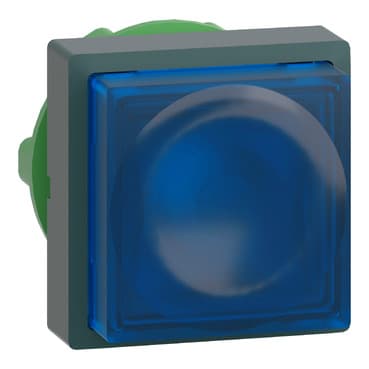

ZB5CW163
Selling Points
- 1Durable and impact-resistant design with IP66 protection.
- 2Versatile interface with integral LED illumination for clear visibility.
- 3Easy installation and replacement via snap-fit assembly.
- 4Clearly distinguishable by both color and touch, minimizing machine control errors.
- 5Certified to multiple international standards including CSA C22.2 No 14 and UL 508.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated push-button |
Device short name | ZB5 | Product Compatibility | Universal LED |
Bezel material | Dark grey plastic | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Head type | Standard |
Shape of signaling unit head | Square | Type of operator | spring return |
Operator profile | Blue projecting, unmarked | Operator additional information | For insertion of legend |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.2 in (30 mm) |
CAD overall depth | 1.3 in (34 mm) | Net Weight | 0.053 lb(US) (0.024 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 10000000 cycles |
Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Cap/operator or lens colour | Blue |
Marking | Unmarked | Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED |
Device presentation | Basic element | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to EN 50102 |
Standards | CSA C22.2 No 14<br />GB 14048.5<br />EN/IEC 60947-5-4<br />UL 508<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | BV<br />DNV<br />GL<br />LROS (Lloyds register of shipping)<br />UL Listed<br />CSA |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
