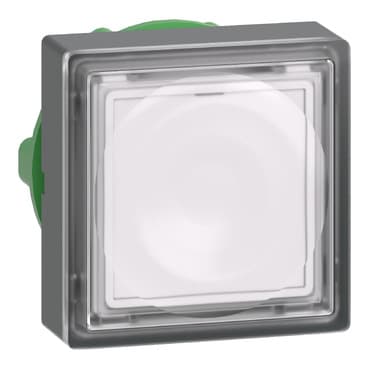

schneider ZB5CW313

Selling Points

  • 1IP66-rated for impact, dust, water, and vibration resistance.
  • 2Snap-fit assembly with screw clamp terminals.
  • 3Ideal for controlling machines with clear visual and tactile feedback.
  • 4Meets UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14, and more.
  • 5Square shape with white flush illumination for minimal error in machine control.
Product Details
ZB5CW313
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for illuminated push-button
Device short name
ZB5
Product Compatibility
Universal LED
Bezel material
Dark grey plastic
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Head type
Standard
Shape of signaling unit head
Square
Type of operator
spring return
Operator profile
White flush, unmarked
Operator additional information
For insertion of legend
CAD overall width
1.2 in (30 mm)
CAD overall height
1.2 in (30 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.051 lb(US) (0.023 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
10000000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 2...5 cut-outs
Cap/operator or lens colour
White
Marking
Unmarked
Electrical composition code
M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED
Device presentation
Basic element
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK05 conforming to IEC 62262
Standards
UL 508<br />IEC 60947-5-1<br />IEC 60947-1<br />CSA C22.2 No 14<br />GB 14048.5<br />IEC 60947-5-4<br />JIS C8201-5-1<br />JIS C8201-1
Product Certifications
CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
