ZB5CW353

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26076

In Stock
Last updated: 2025/4/25
View Specifications

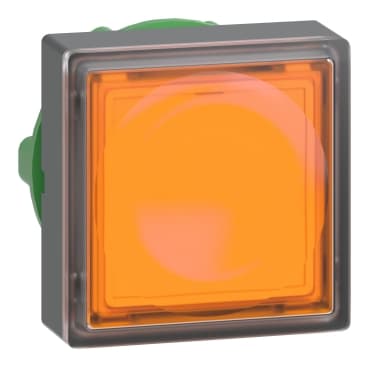

schneider ZB5CW353

Selling Points

  • 1Withstands harsh environments, including high pressure washers and extreme temperatures.
  • 2Illuminated with a clear color, making it easily distinguishable at a distance.
  • 3Quick and simple assembly and disassembly via snap-fit assembly.
  • 4Compatible with various connection types, including screw clamp terminals, plug-in connectors, and printed circuit boards.
  • 5Impact resistant, dust resistant, water resistant, and vibration resistant up to IP66 standards.
Product Details
ZB5CW353
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for illuminated push-button
Device short name
ZB5
Product Compatibility
Universal LED
Bezel material
Dark grey plastic
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Head type
Standard
Shape of signaling unit head
Square
Type of operator
spring return
Operator profile
Orange flush, unmarked
Operator additional information
For insertion of legend
CAD overall width
1.2 in (30 mm)
CAD overall height
1.2 in (30 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.051 lb(US) (0.023 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
10000000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 2...5 cut-outs
Cap/operator or lens colour
Orange
Marking
Unmarked
Electrical composition code
M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED
Device presentation
Basic element
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK05 conforming to EN 50102
Standards
EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />UL 508<br />CSA C22.2 No 14<br />GB 14048.5<br />JIS C8201-1
Product Certifications
UL Listed<br />GL<br />CSA<br />BV<br />LROS (Lloyds register of shipping)<br />DNV
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
