Product Model

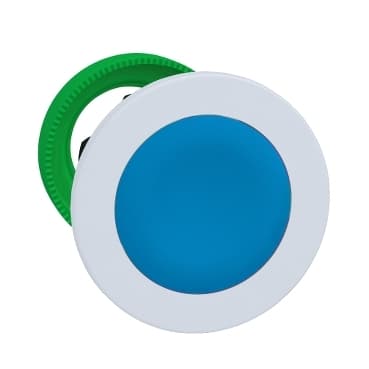

ZB5FA66C1
Selling Points
- 1Ergonomic design for comfortable control.
- 2Easy installation and replacement on compatible systems.
- 3IP66 rating for durability and protection.
- 4Concave button shape for precise actuation.
- 5Compatible with Schneider Electric Harmony XB5 Series.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB5 | Product Compatibility | ZBYF...<br />ZBZF32<br />ZBZF33<br />ZB5AZ |
Bezel material | Plastic colour plated white | Mounting diameter | 1.2 in (30.5 mm) |
Head type | Built-in-flush | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Blue recessed, unmarked | Operator additional information | High guard |
CAD overall width | 1.5 in (37 mm) | CAD overall height | 1.5 in (37 mm) |
CAD overall depth | 1.2 in (30 mm) | Net Weight | 0.07 lb(US) (0.03 kg) |
Mechanical durability | 10000000 cycles | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529 |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
Product Certifications | GL<br />UL Listed<br />DNV<br />LROS (Lloyds register of shipping)<br />CSA<br />BV | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />2 mm peak to peak 2…10 Hz)IEC 60068-2-6 |
Specifications may be subject to change without notice
