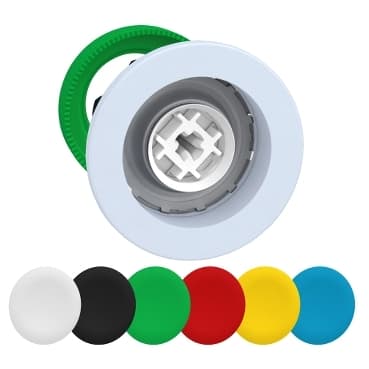

schneider ZB5FA9C1

Selling Points

  • 1Provides an intuitive interface for controlling machines with its flush-mounted design.
  • 2Withstands high pressure washers up to 1015.26 psi and 131 °F, ensuring long-lasting performance.
  • 3Offers robust protection against dust and water, making it suitable for various environments.
  • 4Ensures smooth operation with a spring return mechanism, enhancing user experience.
  • 5Meets CSA C22.2 No 14, EN/IEC 60947-5-1, and UL 508 standards for reliability and safety.
Product Details
ZB5FA9C1
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB5
Product Compatibility
ZBYF...<br />ZBZF32<br />ZBZF33<br />ZB5AZ
Bezel material
Plastic colour plated white
Mounting diameter
1.2 in (30.5 mm)
Head type
Built-in-flush
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
6 colors choice flush, unmarked
Operator additional information
With set of 6 color cap
CAD overall width
1.5 in (37 mm)
CAD overall height
1.5 in (37 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.07 lb(US) (0.03 kg)
Mechanical durability
10000000 cycles
Electrical composition code
C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67 IEC 60529
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK03 conforming to IEC 50102
Product Certifications
BV<br />LROS (Lloyds register of shipping)<br />DNV<br />GL<br />UL Listed<br />CSA
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Vibration resistance
5 gn 10…500 Hz)IEC 60068-2-6<br />2 mm peak to peak 2…10 Hz)IEC 60068-2-6

Specifications may be subject to change without notice
