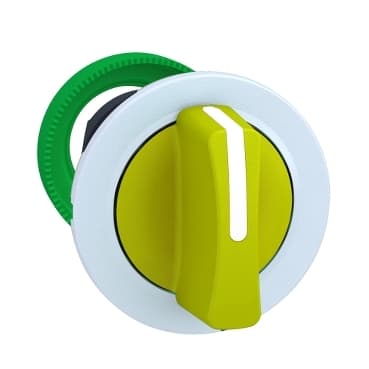

Product Model
ZB5FD305C1
Selling Points
- 1Provides an ergonomic interface for controlling machines with ease.
- 2Designed to withstand 1,000,000 cycles of mechanical durability.
- 3Offers IP66 degree of protection against dust and water, ensuring reliability in harsh environments.
- 4Easily installed and replaced on compatible complete assemblies.
- 5Meets standards such as UL 508, JIS C8201-5-1, and EN/IEC 60947-1 for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for selector switch |
Device short name | ZB5 | Bezel material | Plastic colour plated white |
Mounting diameter | 1.2 in (30.5 mm) | Head type | Built-in-flush |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | stay put | Operator profile | Yellow standard handle |
Operator position information | 3 positions +/- 45° | CAD overall width | 1.5 in (37 mm) |
CAD overall height | 1.5 in (37 mm) | CAD overall depth | 1.8 in (46 mm) |
Net Weight | 0.068 lb(US) (0.031 kg) | Mechanical durability | 1000000 cycles |
Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />SF1 3 single front mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
Standards | UL 508<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | BV<br />CSA<br />LROS (Lloyds register of shipping)<br />DNV<br />UL Listed<br />GL |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
