Product Model

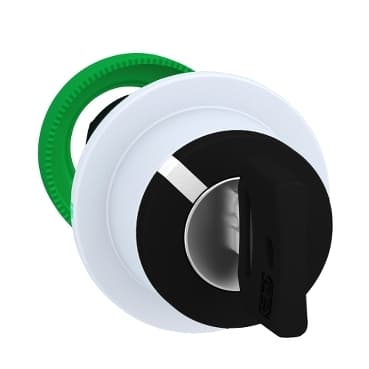

ZB5FG6C1
Selling Points
- 1High-Quality Plastic Material: Durable and resistant to industrial conditions.
- 22-Position 90° Flush Mount: Easy installation with a secure and compact design.
- 3Black Color: Sleek and professional appearance suitable for various industrial settings.
- 4Versatile Configuration Options: Compatible with a wide range of applications and easy to integrate.
- 5Brand: Schneider Electric: Trusted manufacturer known for reliability and performance in industrial control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for key selector switch |
Device short name | ZB5 | Bezel material | Plastic colour plated white |
Mounting diameter | 1.2 in (30.5 mm) | Head type | Built-in-flush |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | Right to left spring return | Operator profile | Black key switch |
Operator position information | 2 positions 90° | Type of Keylock | Key 455 |
Key withdrawal position | Left | CAD overall width | 1.5 in (37 mm) |
CAD overall height | 1.5 in (37 mm) | CAD overall depth | 2.8 in (72 mm) |
Net Weight | 0.152 lb(US) (0.069 kg) | Mechanical durability | 1000000 cycles |
Electrical composition code | C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C3 6 single front mounting<br />SF1 3 single front mounting<br />C15 1 single front mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
Standards | UL 508<br />IEC 60947-5-4<br />JIS C8201-5-1<br />IEC 60947-1<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | UL Listed<br />CSA<br />GL<br />BV<br />LROS (Lloyds register of shipping)<br />DNV |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
