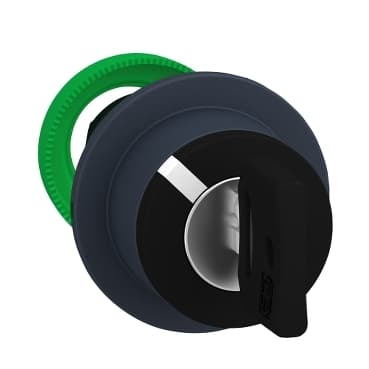

Product Model
ZB5FG6D
Selling Points
- 1High Mechanical Durability: Withstands 1,000,000 cycles for reliable operation.
- 2Flexible Design: Compatible with various mounting options and environments.
- 3Robust Construction: Built with dark grey plastic for enhanced durability and resistance.
- 4Easy Installation: Flush-mounted design simplifies installation and integration.
- 5Comprehensive Certifications: Meets standards like CSA, RINA, LROS, DNV, GL, UL, and more for added reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for key selector switch |
Device short name | ZB5 | Bezel material | Dark grey plastic |
Mounting diameter | 1.2 in (30.5 mm) | Head type | Built-in-flush |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | Right to left spring return | Operator profile | Black key switch |
Operator position information | 2 positions 90° | Type of Keylock | Dom 8D1 |
Key withdrawal position | Left | CAD overall width | 1.5 in (37 mm) |
CAD overall height | 1.5 in (37 mm) | CAD overall depth | 2.8 in (72 mm) |
Net Weight | 0.152 lb(US) (0.069 kg) | Mechanical durability | 1000000 cycles |
Electrical composition code | C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C3 6 single front mounting<br />SF1 3 single front mounting<br />C15 1 single front mounting | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
IK degree of protection | IK03 conforming to IEC 50102 | Standards | IEC 60947-1<br />UL 508<br />IEC 60947-5-4<br />IEC 60947-5-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 |
Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
