Product Model

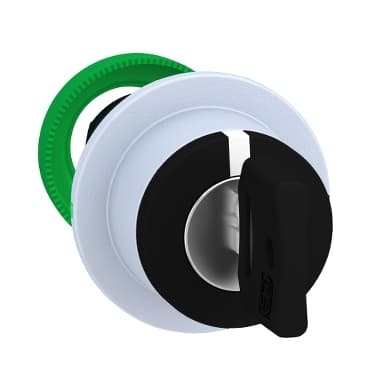

ZB5FG7C1
Selling Points
- 1High Mechanical Durability: Withstands up to 1,000,000 cycles.
- 2Dark Grey Plastic Construction: Durable and resistant to harsh conditions.
- 3Flush Mount Design: Compact and space-efficient installation.
- 4Black Key Switch Legend: Easy-to-read and durable key switch legend.
- 5Suitable for Harsh Environments: Designed to operate in demanding industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for key selector switch |
Device short name | ZB5 | Bezel material | Plastic colour plated white |
Mounting diameter | 1.2 in (30.5 mm) | Head type | Built-in-flush |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | To centre spring return | Operator profile | Black key switch |
Operator position information | 3 positions +/- 45° | Type of Keylock | Key 455 |
Key withdrawal position | Center | CAD overall width | 1.5 in (37 mm) |
CAD overall height | 1.5 in (37 mm) | CAD overall depth | 2.8 in (72 mm) |
Net Weight | 0.152 lb(US) (0.069 kg) | Mechanical durability | 1000000 cycles |
Electrical composition code | C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C3 6 single front mounting<br />SF1 3 single front mounting | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
IK degree of protection | IK03 conforming to IEC 50102 | Standards | UL 508<br />EN/IEC 60947-5-4<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />JIS C8201-1 |
Product Certifications | UL Listed<br />CSA<br />GL<br />DNV<br />LROS (Lloyds register of shipping)<br />BV | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
