schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB5FH0C1

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26593

In Stock
Last updated: 2025/4/22
View Specifications

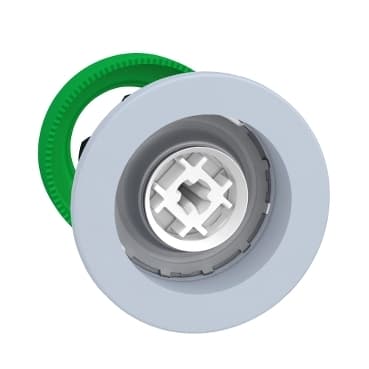

schneider ZB5FH0C1

Selling Points

  • 1Ergonomic design for easy operation.
  • 2Compatible with Harmony XB5 series for seamless integration.
  • 3Built-in-flush mounting for a sleek, compact look.
  • 4High durability with 500,000 mechanical cycles.
  • 5Compliant with IEC 60536 and IP66/67 for robust protection.
Product Details
ZB5FH0C1
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB5F
Product Compatibility
ZBYF...<br />ZBZF32<br />ZBZF33<br />ZB5AZ
Bezel material
Plastic colour plated white
Mounting diameter
1.2 in (30.5 mm)
Head type
Built-in-flush
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
push-push
Operator profile
without cap
CAD overall width
1.5 in (37 mm)
CAD overall height
1.5 in (37 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.07 lb(US) (0.03 kg)
Mechanical durability
500000 cycles
Electrical composition code
C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />C9 3 single front mounting
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67 IEC 60529
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK03 conforming to IEC 50102
Product Certifications
UL Listed<br />CSA
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Vibration resistance
5 gn 10…500 Hz)IEC 60068-2-6<br />2 mm peak to peak 2…10 Hz)IEC 60068-2-6

Specifications may be subject to change without notice
