schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB5FH4

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26609

In Stock
Last updated: 2025/4/21
View Specifications

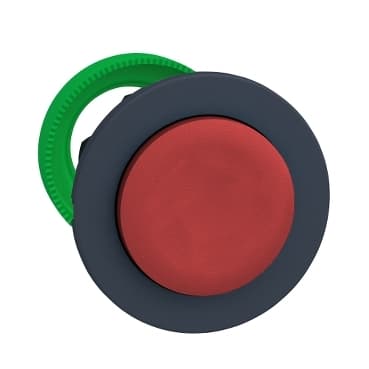

schneider ZB5FH4

Selling Points

  • 1Robust Performance: Designed to withstand severe environments with an IP66 rating and operating temperature range of -40°C to 70°C.
  • 2Easy Installation: Simple mounting with a clip-together component system, reducing installation time and effort.
  • 3High-Temperature Resistance: Suitable for a wide range of industrial applications due to its operating temperature range.
  • 4Durable Construction: Made with chromium-plated metal bezel for added durability and resistance.
  • 5Versatile Mounting Options: Available in standard 30mm mounting diameter, suitable for various control panel configurations.
Product Details
ZB5FH4
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB5F
Product Compatibility
ZBYF...<br />ZBZF32<br />ZBZF33<br />ZB5AZ
Bezel material
Dark grey plastic
Mounting diameter
1.2 in (30.5 mm)
Head type
Built-in-flush
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
push-push
Operator profile
Red projecting, unmarked
CAD overall width
1.5 in (37 mm)
CAD overall height
1.5 in (37 mm)
CAD overall depth
1.3 in (32 mm)
Net Weight
0.068 lb(US) (0.031 kg)
Mechanical durability
500000 cycles
Electrical composition code
C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />C9 3 single front mounting
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50 E<br />Type 12 UL 50 E<br />Type 4 UL 50 E<br />Type 4X UL 50 E
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK03 conforming to IEC 50102
Standards
UL 508<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1
Product Certifications
UL Listed<br />CSA
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Vibration resistance
5 gn 10…500 Hz)IEC 60068-2-6<br />2 mm peak to peak 2…10 Hz)IEC 60068-2-6

Specifications may be subject to change without notice
