Product Model

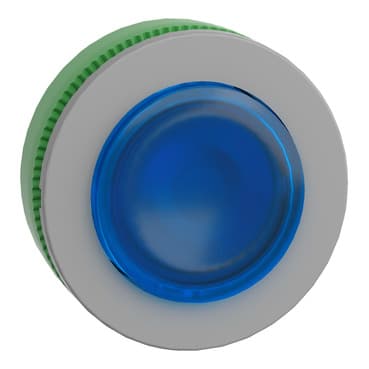

ZB5FH63C0
Selling Points
- 1Provides an ergonomic interface for controlling machines with a clear, visually distinguishable color.
- 2Vibration resistant, impact resistant, high pressure washer resistant, and dust resistant with IP67 protection.
- 3Easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly.
- 4Meets mechanical durability standards with 500,000 cycles and shock resistance up to 30 gn.
- 5Compatible with universal LED and suitable for operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated push-button |
Device short name | ZB5F | Product Compatibility | Universal LED |
Bezel material | Plastic colour plated grey | Mounting diameter | 1.2 in (30.5 mm) |
Head type | Built-in-flush | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | push-push |
Operator profile | Blue projecting, unmarked | CAD overall width | 1.5 in (37 mm) |
CAD overall height | 1.5 in (37 mm) | CAD overall depth | 1.3 in (32 mm) |
Net Weight | 0.068 lb(US) (0.031 kg) | Mechanical durability | 500000 cycles |
Electrical composition code | C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />C9 3 single front mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529 | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
IK degree of protection | IK03 conforming to IEC 50102 | Standards | UL 508<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 |
Product Certifications | UL Listed<br />CSA | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />2 mm peak to peak 2…10 Hz)IEC 60068-2-6 |
