Product Model

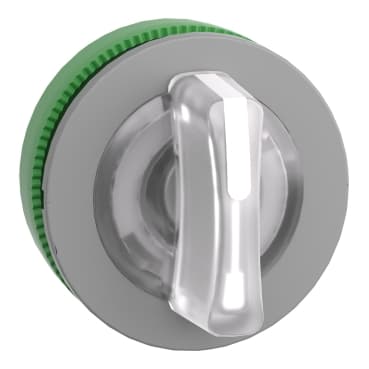

ZB5FK1513C0
Selling Points
- 1High Durability: Withstands 500,000 mechanical cycles and 30 gn shock resistance.
- 2Universal Compatibility: Compatible with universal LED devices for versatile applications.
- 3Robust Protection: IP66 and IP67 protection against dust and water, ensuring reliability in harsh environments.
- 4Efficient Design: Easy installation and modern design for seamless integration into Harmony XB5 series.
- 5Sustainable Packaging: Made with recycled cardboard and free of single-use plastics, promoting eco-friendly practices.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated selector switch |
Product Compatibility | Universal LED | Device short name | ZB5 |
Bezel material | Plastic colour plated grey | Mounting diameter | 1.2 in (30.5 mm) |
Head type | Built-in-flush | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | To centre spring return |
Operator profile | White standard handle | Operator position information | 3 positions +/- 45° |
CAD overall width | 1.5 in (37 mm) | CAD overall height | 1.5 in (37 mm) |
CAD overall depth | 1.8 in (46 mm) | Net Weight | 0.07 lb(US) (0.03 kg) |
Mechanical durability | 500000 cycles | Electrical composition code | M3 4 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />M4 4 single and double front mounting integral LED |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
IK degree of protection | IK03 conforming to IEC 50102 | Standards | UL 508<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />JIS C8201-1 |
Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
