Product Model

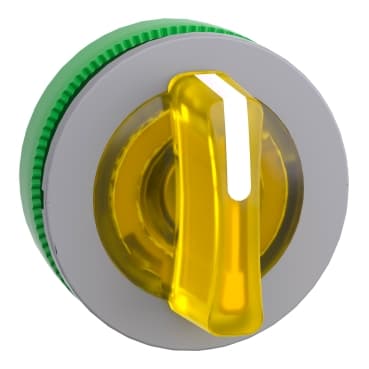

ZB5FK1583C0
Selling Points
- 1Robust Design: The Schneider Electric Harmony XB5 ZB5FK1583C0 offers high impact resistance up to IK06 rating and operates in temperatures from -40°C to +70°C.
- 2Easy Installation: This selector switch features a clip-together component system, making it simple and quick to install with an anti-loosening system for screw clamp terminals.
- 3High Reliability: Designed for repetitive operations, the Harmony XB5 delivers extremely robust performance, capable of up to 10 million operations.
- 4Advanced Protection: With IP66 protection, this switch is resistant to high-pressure washers and suitable for harsh environments, ensuring reliable performance.
- 5Comprehensive Standards: Compliant with international standards (IEC, UL, CCC, EAC, JIS) and marine certified (BV, LROS, BDNV, GL), ensuring high electrical performance and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated selector switch |
Product Compatibility | Universal LED | Device short name | ZB5 |
Bezel material | Plastic colour plated grey | Mounting diameter | 1.2 in (30.5 mm) |
Head type | Built-in-flush | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | To centre spring return |
Operator profile | Yellow standard handle | Operator position information | 3 positions +/- 45° |
CAD overall width | 1.5 in (37 mm) | CAD overall height | 1.5 in (37 mm) |
CAD overall depth | 1.8 in (46 mm) | Net Weight | 0.07 lb(US) (0.03 kg) |
Mechanical durability | 500000 cycles | Electrical composition code | M3 4 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />M4 4 single and double front mounting integral LED |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
IK degree of protection | IK03 conforming to IEC 50102 | Standards | UL 508<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C8201-1 |
Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
