schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB5FV033

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26718

In Stock
Last updated: 2025/4/21
View Specifications

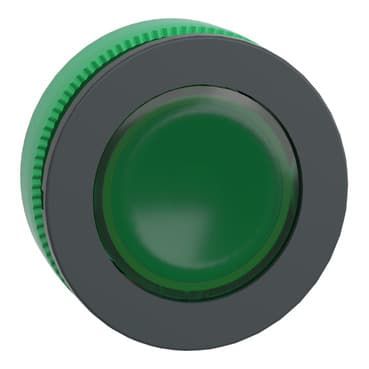

schneider ZB5FV033

Selling Points

  • 1Green Pilot Light: The ZB5FV033 features a green pilot light for clear visual feedback.
  • 2Flush Mount Design: Designed for flush mounting, ensuring a sleek and integrated look.
  • 3Antimicrobial Plastic: Made with antimicrobial plastic for enhanced hygiene and durability.
  • 4Universal LED: Compatible with universal LED lights, providing consistent illumination.
  • 5IP66, IP67, IP69K Rating: Meets high IP ratings for dust and water resistance, ensuring reliability in harsh environments.
Product Details
ZB5FV033
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for pilot light
Product Compatibility
Universal LED
Device short name
ZB5
Bezel material
Dark grey plastic
Mounting diameter
1.2 in (30.5 mm)
Head type
Built-in-flush
Sale per indivisible quantity
1
Shape of signaling unit head
Round
cap/operator or lens colour
Green
Operator additional information
With plain lens
CAD overall width
1.5 in (37 mm)
CAD overall height
1.5 in (37 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.033 lb(US) (0.015 kg)
Electrical composition code
P1 front mounting integral LED<br />P2 front mounting integral LED and transformer<br />PF1 front mounting integral LED
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK03 conforming to IEC 50102
Standards
IEC 60947-1<br />IEC 60947-5-4<br />UL 508<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />JIS C8201-5-1<br />IEC 60947-5-5<br />JIS C8201-1<br />ISO 21702<br />ISO 22196:2011
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
