schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB5FV083C0

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26731

In Stock
Last updated: 2025/4/21
View Specifications

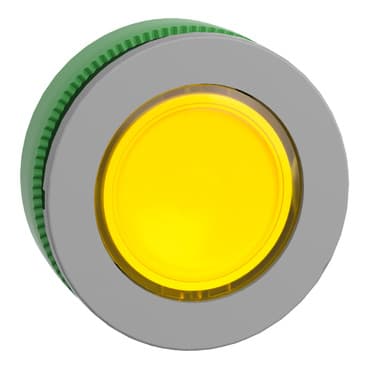

schneider ZB5FV083C0

Selling Points

  • 1Universal LED Compatibility: Works seamlessly with universal LED blocks.
  • 2IP66 Protection: Ensures durability in harsh environments with an IP66 rating.
  • 3Grey Bezel with Yellow Flush Mount: Aesthetically pleasing design with a grey bezel and yellow flush mount.
  • 4Operates in Extreme Temperatures: Functions between -40°C to 70°C, making it versatile for various applications.
  • 5Compact Design: Measuring 30mm in diameter, it fits perfectly in most control panels.
Product Details
ZB5FV083C0
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for pilot light
Product Compatibility
Universal LED
Device short name
ZB5
Bezel material
Plastic colour plated grey
Mounting diameter
1.2 in (30.5 mm)
Head type
Built-in-flush
Sale per indivisible quantity
1
Shape of signaling unit head
Round
cap/operator or lens colour
Yellow
Operator additional information
With plain lens
CAD overall width
1.5 in (37 mm)
CAD overall height
1.5 in (37 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.033 lb(US) (0.015 kg)
Electrical composition code
P1 front mounting integral LED<br />P2 front mounting integral LED and transformer<br />PF1 front mounting integral LED
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP67<br />IP66 IEC 60529
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK03 conforming to IEC 50102
Standards
IEC 60947-5-5<br />IEC 60947-1<br />IEC 60947-5-4<br />JIS C8201-5-1<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />UL 508<br />JIS C8201-1
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
