Product Model

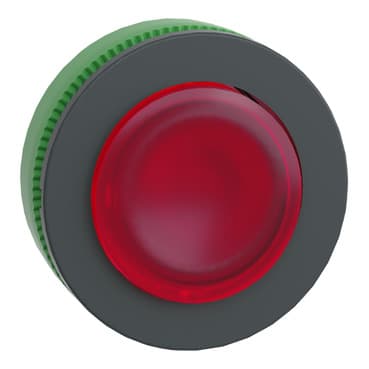

ZB5FW143
Selling Points
- 1Built with high impact resistance up to IK06 rating and operating temperature range from -40 to +70 °C.
- 2Illuminated with integral LED for clear visibility in various conditions.
- 3Sealing effectiveness rated up to IP66, IP67, IP68, IP69, and IP69K for harsh environments.
- 4Compatible with both standard and flush mounting options for flexible installation.
- 5Includes various actuator colors (red) and illumination types (ZBVB, ZBVG, ZBVJ, ZBVM) for customization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated push-button |
Device short name | ZB5F | Product Compatibility | Universal LED |
Bezel material | Dark grey plastic | Mounting diameter | 1.2 in (30.5 mm) |
Head type | Built-in-flush | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Red projecting, unmarked | CAD overall width | 1.5 in (37 mm) |
CAD overall height | 1.5 in (37 mm) | CAD overall depth | 1.3 in (32 mm) |
Net Weight | 0.068 lb(US) (0.031 kg) | Mechanical durability | 10000000 cycles |
Electrical composition code | M1 6 single front mounting<br />M2 6 single and double front mounting<br />M10 2 single front mounting<br />M6 2 single front mounting<br />MF1 2 single front mounting | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50 E<br />Type 12 UL 50 E<br />Type 4 UL 50 E<br />Type 4X UL 50 E |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
Standards | UL 508<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | UL Listed<br />CSA |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 | Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />2 mm peak to peak 2…10 Hz)IEC 60068-2-6 |
Specifications may be subject to change without notice
