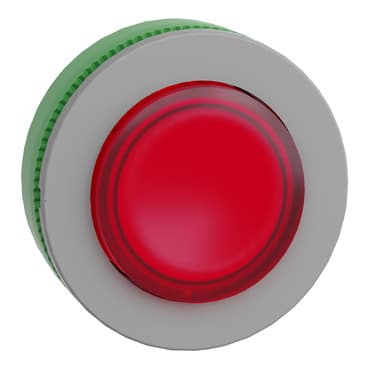

Product Model
ZB5FW143C0
Selling Points
- 1Built to withstand harsh environments with IP66 and IP67 ratings.
- 2Quick and easy assembly and disassembly for efficient setup.
- 3Compatible with various connection types including screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
- 4Red illuminated push button for enhanced visibility in dark conditions.
- 5Designed to perform up to 10 million operations, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated push-button |
Device short name | ZB5F | Product Compatibility | Universal LED |
Bezel material | Plastic colour plated grey | Mounting diameter | 1.2 in (30.5 mm) |
Head type | Built-in-flush | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Red projecting, unmarked | CAD overall width | 1.5 in (37 mm) |
CAD overall height | 1.5 in (37 mm) | CAD overall depth | 1.3 in (32 mm) |
Net Weight | 0.068 lb(US) (0.031 kg) | Mechanical durability | 10000000 cycles |
Electrical composition code | M1 6 single front mounting<br />M2 6 single and double front mounting<br />M10 2 single front mounting<br />M6 2 single front mounting<br />MF1 2 single front mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529 | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
IK degree of protection | IK03 conforming to IEC 50102 | Standards | UL 508<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 |
Product Certifications | UL Listed<br />CSA | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />2 mm peak to peak 2…10 Hz)IEC 60068-2-6 |
Specifications may be subject to change without notice
