Product Model
ZB5FW333
Selling Points

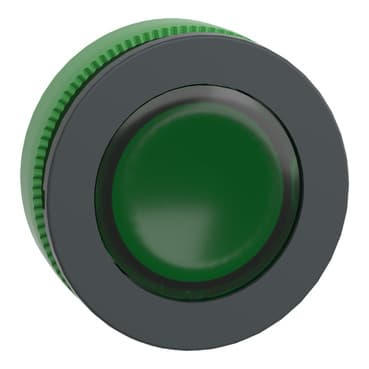

- 1The ZB5FW333 features a flush mount illuminated pushbutton head, ensuring visibility in various environments.
- 2Available in a vibrant green color, this switch is easy to identify and use.
- 3With an IP66 rating, this switch is highly resistant to dust and water, making it suitable for harsh conditions.
- 4Designed for illuminated applications, the ZB5FW333 offers a round green head with a plain lens.
- 5Compatible with universal LED lights, this switch can be easily integrated into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated push-button |
Device short name | ZB5 | Product Compatibility | Universal LED |
Bezel material | Dark grey plastic | Mounting diameter | 1.2 in (30.5 mm) |
Sale per indivisible quantity | 1 | Head type | Built-in-flush |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Green flush, unmarked | Operator additional information | With plain lens |
CAD overall width | 1.5 in (37 mm) | CAD overall height | 1.5 in (37 mm) |
CAD overall depth | 1.2 in (30 mm) | Net Weight | 0.037 lb(US) (0.017 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 10000000 cycles |
Cap/operator or lens colour | Green | Marking | Unmarked |
Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED | Device presentation | Basic element |
Protective treatment | TC | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK03 conforming to IEC 62262 | Standards | IEC 60947-5-1<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />GB 14048.5<br />JIS C8201-5-1<br />UL 508<br />IEC 60947-1<br />JIS C8201-1<br />ISO 21702<br />ISO 22196:2011 |
Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
