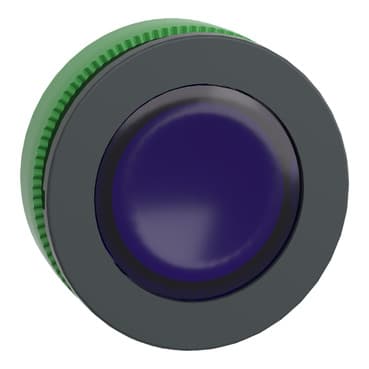

schneider ZB5FW363

Selling Points

  • 1Ergonomic Interface: Provides an ergonomic interface for controlling machines with its flush mount design.
  • 2Antimicrobial Characteristics: Equipped with antimicrobial properties to enhance hygiene in industrial settings.
  • 3Robust IP Ratings: Offers IP66, IP67, and IP69K protection against dust, water, and high-pressure washes.
  • 4Easy Installation: Easy to install and replace on compatible push-button units via snap-fit assembly.
  • 5Vibration Resistant: Designed to withstand vibrations and impacts, ensuring reliable operation in harsh environments.
Product Details
ZB5FW363
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for illuminated push-button
Device short name
ZB5
Product Compatibility
Universal LED
Bezel material
Dark grey plastic
Mounting diameter
1.2 in (30.5 mm)
Sale per indivisible quantity
1
Head type
Built-in-flush
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Blue flush, unmarked
Operator additional information
With plain lens
CAD overall width
1.5 in (37 mm)
CAD overall height
1.5 in (37 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.037 lb(US) (0.017 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
10000000 cycles
Cap/operator or lens colour
Blue
Marking
Unmarked
Electrical composition code
M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED
Device presentation
Basic element
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK03 conforming to IEC 62262
Standards
IEC 60947-5-1<br />GB 14048.5<br />CSA C22.2 No 14<br />UL 508<br />JIS C8201-5-1<br />IEC 60947-1<br />IEC 60947-5-4<br />JIS C8201-1<br />ISO 21702<br />ISO 22196:2011
Product Certifications
CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
