Product Model

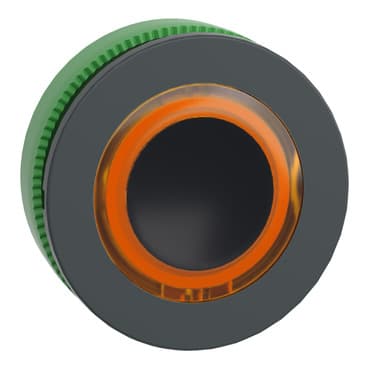

ZB5FW953
Selling Points
- 1Ergonomic Design: Ergonomic interface for easy operation.
- 2High Durability: 10,000,000 cycles mechanical durability.
- 3IP66 Rating: Sealing effectiveness up to IP66 for harsh environments.
- 4Orange Flush Legend: Orange flush legend for clear visibility.
- 5Dark Grey Plastic: Made from durable dark grey plastic material.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated push-button |
Device short name | ZB5 | Product Compatibility | Universal LED |
Bezel material | Dark grey plastic | Mounting diameter | 1.2 in (30.5 mm) |
Sale per indivisible quantity | 1 | Head type | Built-in-flush |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Orange flush, unmarked | Operator additional information | With illuminated ring |
CAD overall width | 1.5 in (37 mm) | CAD overall height | 1.5 in (37 mm) |
CAD overall depth | 1.2 in (30 mm) | Net Weight | 0.037 lb(US) (0.017 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 10000000 cycles |
Cap/operator or lens colour | Orange | Marking | Unmarked |
Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK03 conforming to IEC 62262 |
Standards | IEC 60947-5-1<br />CSA C22.2 No 14<br />UL 508<br />JIS C8201-5-1<br />IEC 60947-1<br />GB 14048.5<br />IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
