Product Model
ZB5RZC2
Selling Points
- 1Durable construction with a mechanical durability of 1,000,000 cycles.
- 2Operates wirelessly and batterylessly, ideal for industrial settings.
- 3Front face IP65 protection and back face IP30 protection for reliable operation in harsh environments.
- 4Features a spring return mechanism for easy operation and consistent performance.
- 5Meets standards such as EN/IEC 60947-5-4 and CSA C22.2 No 14 for global compatibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5R | Product or Component Type | Wireless and batteryless transmitter |
Device short name | XB5R | Bezel material | Dark grey plastic |
Mounting diameter | 1.6 in (40 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | spring return |

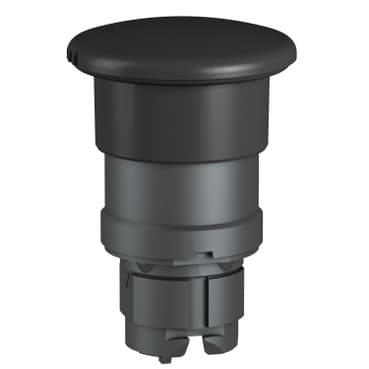

Operator profile | Black mushroom Ø 40 mm, unmarked | CAD overall width | 2.2 in (56 mm) |
CAD overall height | 2.07 in (52.59 mm) | CAD overall depth | 5.9 in (150.2 mm) |
Mechanical durability | 1000000 cycles | Product Compatibility | ZBZ28 |
Mechanical robustness | Free fall resistance 1000 mm IEC 60068-2-32 | compatibility code | XB5R |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
IP degree of protection | IP65 IEC 60529 front face)<br />IP30 IEC 60529 back face)<br />IP65 UL Type 12 front face) | NEMA degree of protection | NEMA 12 |
IK degree of protection | IK03 conforming to IEC 50102 | Standards | IEC 60947-5-4<br />IEC 60947-1<br />CSA C22.2 No 14<br />UL 508<br />IEC 60947-5-1<br />JIS C8201-5-1<br />JIS C8201-1 |
Product Certifications | DNV<br />CSA<br />GL<br />LROS (Lloyds register of shipping)<br />UL Listed<br />BV | Vibration resistance | +/- 10 mm 2…11 Hz)IEC 60068-2-6 |
Specifications may be subject to change without notice
