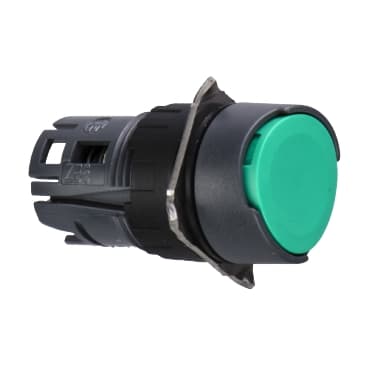

schneider ZB6AA3

Selling Points

  • 1Green Modular Flush Non-Illuminated Pushbutton: The ZB6AA3 features a green, non-illuminated pushbutton head with a spring return mechanism.
  • 2Compliant with International Standards: Meets RoHS compliance and is certified for UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, and other international standards.
  • 3High-Quality Plastic Construction: Made from durable plastic material with an IP65 rating for protection against dust and water.
  • 4Compact Design: Measures 16 mm in diameter and 18 mm in height, making it suitable for various control panel applications.
  • 5Easy Installation: Designed for easy integration into your control panel systems with a round shape and unmarked button.
Product Details
ZB6AA3
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Green flush, unmarked
CAD overall width
0.7 in (18 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.3 in (33 mm)
Net Weight
0.035 lb(US) (0.016 kg)
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94
Standards
JIS C 852<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />UL 508<br />JIS C8201-1
Product Certifications
CSA<br />GOST<br />UL<br />CCC
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
