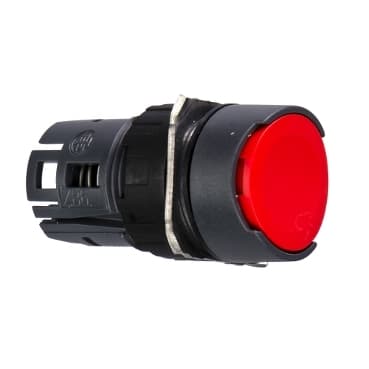

Schneider Electric ZB6AA4 Harmony Pushbutton Head

Selling Points

1Modular Design: Compact and versatile, fits seamlessly into various control systems.
2Non-Illuminated: Ideal for applications where lighting is not required, enhancing visibility in dark environments.
3Spring Return: Automatically returns to its original position after actuation, ensuring consistent operation.
4IP65 Rating: Durable and resistant to dust and water, suitable for harsh environments.
5UL 508 Certified: Meets stringent safety standards for control equipment, ensuring reliability and safety.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Harmony XB6	Product or Component Type	Head for non-illuminated push-button
Device short name	ZB6	Bezel material	Plastic
Mounting diameter	0.6 in (16 mm)	Sale per indivisible quantity	1
Shape of signaling unit head	Round	Type of operator	spring return
Operator profile	Red flush, unmarked	CAD overall width	0.7 in (18 mm)
CAD overall height	0.7 in (18 mm)	CAD overall depth	1.3 in (33 mm)
Net Weight	0.035 lb(US) (0.016 kg)	Protective treatment	TC
Ambient Air Temperature for Storage	-40…158 °F (-40…70 °C)	Ambient Air Temperature for Operation	-13…158 °F (-25…70 °C)
Electrical shock protection class	Class II IEC 61140	IP degree of protection	IP65 IEC 60529
NEMA degree of protection	NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94	Standards	UL 508<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />JIS C 852<br />JIS C8201-1
Product Certifications	UL<br />CSA<br />GOST<br />CCC	Vibration resistance	+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
