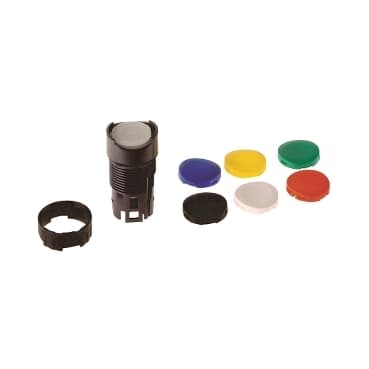

Schneider ZB6AA9 Non-Illuminated Push Button

Selling Points

1High Durability: Built to withstand harsh industrial environments with a spring return operator.
2Versatile Design: Compatible with Harmony XB6 systems, offering a range of color cap options.
3Reliable Operation: Conforms to IEC 60068-2-6 standards for vibration resistance and IEC 60529 for IP65 protection.
4Easy Installation: Features a round shape and 16 mm mounting diameter for seamless integration.
5Long Warranty: Backed by a 12-month warranty for added peace of mind.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Harmony XB6	Product or Component Type	Head for non-illuminated push-button
Device short name	ZB6	Bezel material	Plastic
Mounting diameter	0.6 in (16 mm)	Sale per indivisible quantity	1
Shape of signaling unit head	Round	Type of operator	spring return
Operator profile	6 colors choice flush, unmarked	Operator additional information	With set of 6 color cap
CAD overall width	0.7 in (18 mm)	CAD overall height	0.7 in (18 mm)
CAD overall depth	1.3 in (33 mm)	Net Weight	0.035 lb(US) (0.016 kg)
Protective treatment	TC	Ambient Air Temperature for Storage	-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation	-13…158 °F (-25…70 °C)	Electrical shock protection class	Class II IEC 61140
IP degree of protection	IP65 IEC 60529	NEMA degree of protection	NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94
Standards	EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />JIS C 852<br />UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />JIS C8201-1	Product Certifications	CCC<br />CSA<br />UL<br />GOST
Vibration resistance	+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6	Shock resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
