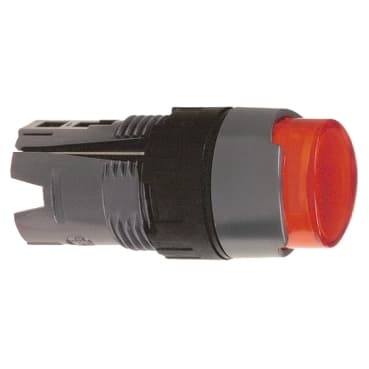

schneider ZB6AE4

Selling Points

  • 1Red Illuminated Design: The Schneider Electric ZB6AE4 Harmony Pushbutton Head is equipped with a bright red illumination for enhanced visibility.
  • 2Modular Spring Return: This pushbutton head features a standard unmarked, spring return mechanism for reliable operation.
  • 3IP65 Protection: Designed with IP65 protection, it can withstand various environmental conditions, making it suitable for diverse applications.
  • 4Panel Mounting: Easily mounts in 16mm diameter holes, ensuring quick and secure installation.
  • 5Compliant with Industry Standards: Meets RoHS, UL 508, CSA C22.2 No. 14, and EN/IEC 60947-1 standards for safety and performance.
Product Details
ZB6AE4
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for illuminated push-button
Product Compatibility
Integral LED
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Red projecting, unmarked
CAD overall width
0.7 in (18 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.4 in (36 mm)
Net Weight
0.035 lb(US) (0.016 kg)
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94<br />NEMA 13 CSA C22.2 No 94
Standards
UL 508<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C 852<br />JIS C8201-1
Product Certifications
GOST<br />UL<br />CCC<br />CSA
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
