ZB6AE5

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26989

In Stock
Last updated: 2025/4/20
View Specifications

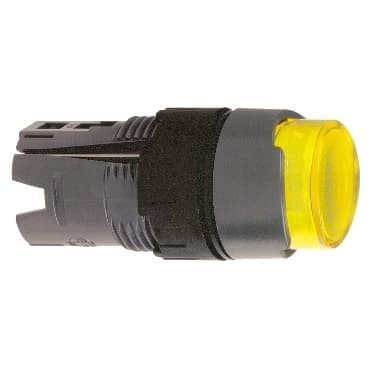

schneider ZB6AE5

Selling Points

  • 1Compact Design: Designed for applications with restricted surface areas.
  • 2IP65 Protection: Ensures durability in various environments.
  • 3Versatile Mounting: Compatible with quick connectors, solder tabs, and PCB pins.
  • 4Certified Reliability: Meets UL, CSA, CCC, and IEC standards for safety and performance.
  • 5Durable Operation: Supports up to 2 million operating cycles for spring return push buttons.
Product Details
ZB6AE5
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for illuminated push-button
Product Compatibility
Integral LED
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Yellow projecting, unmarked
CAD overall width
0.7 in (18 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.4 in (36 mm)
Net Weight
0.035 lb(US) (0.016 kg)
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94<br />NEMA 13 CSA C22.2 No 94
Standards
JIS C 852<br />UL 508<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />JIS C8201-1
Product Certifications
CSA<br />GOST<br />UL<br />CCC
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
