schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB6AE6

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26990

In Stock
Last updated: 2025/4/20
View Specifications

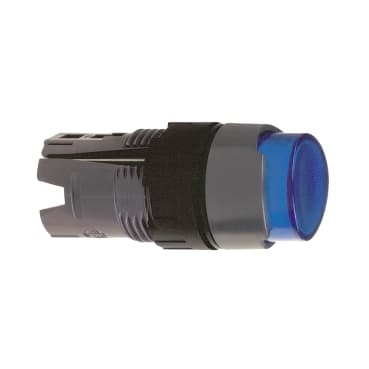

schneider ZB6AE6

Selling Points

  • 1IP65 Protection: Ensures complete protection against solid particles and a good level of protection against water.
  • 2Lead-Free RoHS Compliance: Meets international standards for reducing hazardous substances.
  • 3Versatile Illumination: Available in various colors and types, including LED pilot lights for enhanced visibility.
  • 4Durable Construction: Made from high-quality plastic with a round body shape for long-lasting performance.
  • 5Quick Connect Termination: Easy installation with quick connect termination style for efficient setup.
Product Details
ZB6AE6
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for illuminated push-button
Product Compatibility
Integral LED
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Blue projecting, unmarked
CAD overall width
0.7 in (18 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.4 in (36 mm)
Net Weight
0.035 lb(US) (0.016 kg)
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94<br />NEMA 13 CSA C22.2 No 94
Standards
EN/IEC 60947-5-1<br />EN/IEC 60947-5-5<br />JIS C 852<br />CSA C22.2 No 14<br />UL 508<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />JIS C8201-1
Product Certifications
GOST<br />CSA<br />CCC<br />UL
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
