schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB6AS934

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26941

In Stock
Last updated: 2025/4/20
View Specifications

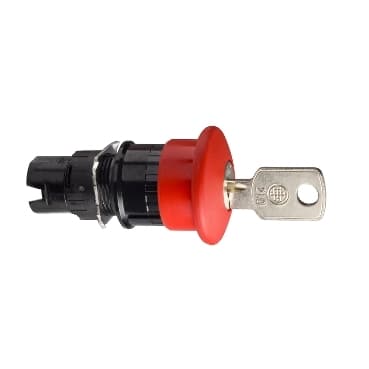

schneider ZB6AS934

Selling Points

  • 1Red Mushroom Design: The ZB6AS934 features a distinctive red mushroom design, enhancing visibility in various environments.
  • 2Mechanical Latching: Equipped with an unmarked trigger action and mechanical latching mechanism for secure operation.
  • 3IP65 Rating: Designed to withstand harsh conditions with an IP65 rating, ensuring dust and water resistance.
  • 4Compliance Standards: Meets international standards including RoHS, REACH, and UL Listed for safety and environmental compliance.
  • 5Sustainable Choice: Part of Schneider Electric's Green Premium series, offering best-in-class environmental performance and circular economy practices.
Product Details
ZB6AS934
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for emergency stop push-button
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
trigger action and mechanical latching
Reset
Key release
Operator profile
Red mushroom Ø 30 mm, unmarked
Type of Keylock
Key 200
CAD overall width
1.2 in (30 mm)
CAD overall height
1.2 in (30 mm)
CAD overall depth
2.8 in (70 mm)
Net Weight
0.11 lb(US) (0.05 kg)
Mechanical durability
100000 cycles
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94
Standards
JIS C8201-5-1<br />UL 508<br />EN/ISO 13850<br />JIS C 852<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />EN/IEC 60204-1<br />JIS C8201-1
Product Certifications
UL<br />CSA<br />GOST<br />CCC
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
