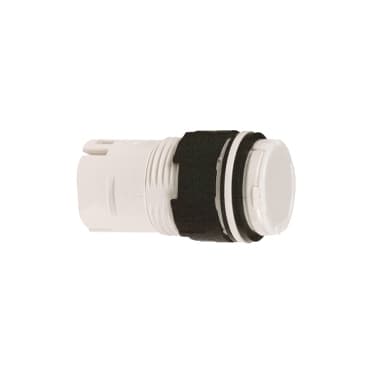

Schneider Electric ZB6AV0 Illuminated Head for Integral LED Applications

Selling Points

1The ZB6AV0 features a plastic body and bezel with a round shape, ensuring durability in various environments.
2Offers a degree of protection rated at IP65, NEMA 4X, and NEMA 13, ensuring it can withstand harsh conditions.
3Measures 16 mm in diameter, 18 mm in net height, 33 mm in net depth, and 18 mm in net width.
4Designed for integral LED applications, making it suitable for a wide range of industrial automation needs.
5Available in new factory-sealed condition, ensuring it is never used and comes with original packaging and factory seal.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Harmony XB6	Product or Component Type	Head for pilot light
Product Compatibility	Integral LED	Device short name	ZB6
Bezel material	Plastic	Mounting diameter	0.6 in (16 mm)
Sale per indivisible quantity	1	Shape of signaling unit head	Round
Operator additional information	Without cap	CAD overall width	0.7 in (18 mm)
CAD overall height	0.7 in (18 mm)	CAD overall depth	1.3 in (33 mm)
Net Weight	0.033 lb(US) (0.015 kg)	Protective treatment	TC
Ambient Air Temperature for Storage	-40…158 °F (-40…70 °C)	Ambient Air Temperature for Operation	-13…158 °F (-25…70 °C)
Electrical shock protection class	Class II IEC 61140	IP degree of protection	IP65 IEC 60529
NEMA degree of protection	NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94	Standards	EN/IEC 60947-5-1<br />JIS C 4520<br />UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />JIS C 852<br />EN/IEC 60947-5-5
Product Certifications	CSA<br />UL<br />GOST<br />CCC	Vibration resistance	+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
