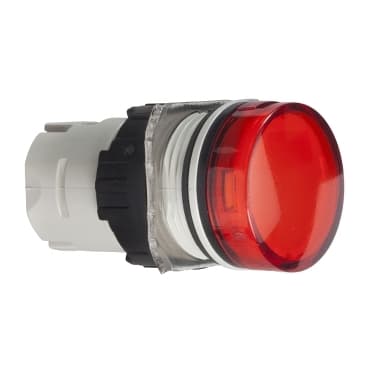

schneider ZB6AV4

Selling Points

  • 1Integral LED Design: Features an integral LED for clear and efficient lighting.
  • 2NEMA 4/4X/13/IP65 Enclosure: Offers robust protection against dust and water, ensuring reliability in harsh environments.
  • 3Wide Operating Temperature Range: Operates between -13°F to 158°F (-25°C to 70°C), suitable for diverse industrial settings.
  • 4Red Cap/Operator Lens: Includes a red cap/operator lens for enhanced visibility.
  • 5Durable Plastic Bezel: Constructed with a durable plastic bezel for long-lasting performance.
Product Details
ZB6AV4
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for pilot light
Product Compatibility
Integral LED
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
cap/operator or lens colour
Red
CAD overall width
0.7 in (18 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.3 in (33 mm)
Net Weight
0.033 lb(US) (0.015 kg)
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94
Standards
UL 508<br />EN/IEC 60947-5-1<br />JIS C 4520<br />EN/IEC 60947-5-5<br />JIS C 852<br />CSA C22.2 No 14<br />EN/IEC 60947-1
Product Certifications
GOST<br />CSA<br />CCC<br />UL
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
