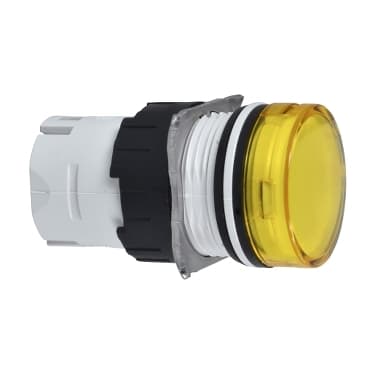

schneider ZB6AV5

Selling Points

  • 1High-Quality Signaling Solution: The Schneider Electric ZB6AV5 Harmony Pilot Light Head offers reliable and efficient signaling with its integral LED design.
  • 2Durable Construction: Made from robust plastic, this pilot light head is designed to withstand harsh environments and ensure long-lasting performance.
  • 3IP65 Protection: Equipped with IP65 protection, this product is resistant to dust and water, making it suitable for various industrial settings.
  • 4Modular Standard Design: Compatible with a wide range of applications, the ZB6AV5 features a modular standard design that simplifies installation and maintenance.
  • 5Compliant with International Standards: Meets or exceeds UL 508, CSA C22.2 No. 14, CE Certified, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C 852/C-4520, and CCC Certified for global use.
Product Details
ZB6AV5
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for pilot light
Product Compatibility
Integral LED
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
cap/operator or lens colour
Yellow
CAD overall width
0.7 in (18 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.3 in (33 mm)
Net Weight
0.033 lb(US) (0.015 kg)
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94
Standards
EN/IEC 60947-5-1<br />UL 508<br />EN/IEC 60947-1<br />JIS C 852<br />JIS C 4520<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14
Product Certifications
CCC<br />GOST<br />UL<br />CSA
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
