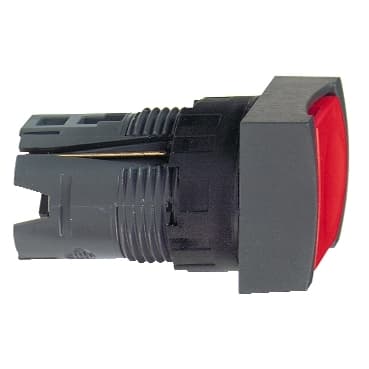

Schneider Electric ZB6CA4 - Non-Illuminated Push Button Switch, 16mm Red

Selling Points

1Compact Design: The ZB6CA4 features a small 16mm diameter, making it perfect for panel mounting.
2Red Actuator: The switch has a distinctive red actuator for easy identification.
3Spring Return Mechanism: Ensures consistent operation with a spring return mechanism.
4Non-Illuminated: Designed without illumination, ideal for applications where light is not required.
5Harmony XB6 Series: Part of the reliable Harmony XB6 series from Schneider Electric, known for its durability and performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Harmony XB6	Product or Component Type	Head for non-illuminated push-button
Device short name	ZB6	Bezel material	Plastic
Mounting diameter	0.6 in (16 mm)	Sale per indivisible quantity	1
Shape of signaling unit head	Square	Type of operator	spring return
Operator profile	Red flush, unmarked	CAD overall width	0.7 in (18 mm)
CAD overall height	0.7 in (18 mm)	CAD overall depth	1.3 in (33 mm)
Net Weight	0.035 lb(US) (0.016 kg)	Protective treatment	TC
Ambient Air Temperature for Storage	-40…158 °F (-40…70 °C)	Ambient Air Temperature for Operation	-13…158 °F (-25…70 °C)
Electrical shock protection class	Class II IEC 61140	IP degree of protection	IP65 IEC 60529
NEMA degree of protection	NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94	Standards	JIS C 852<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />UL 508<br />JIS C8201-1
Product Certifications	CCC<br />UL<br />CSA<br />GOST	Vibration resistance	+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
