schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB6CA5

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26960

In Stock
Last updated: 2025/4/20
View Specifications

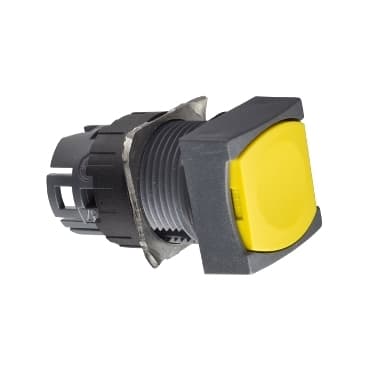

schneider ZB6CA5

Selling Points

  • 1IP65 Protection: Durable and resistant to dust and water, ensuring reliable operation in various environments.
  • 2Spring Return Actuation: Easy to use with a spring return mechanism, providing consistent and reliable actuation.
  • 3Yellow Push Button: Visually distinct yellow color for clear identification and easy operation.
  • 4Panel Mountable: Conveniently mountable on panels with a 16mm cutout diameter, ideal for compact designs.
  • 5Wide Temperature Range: Operates effectively from -40°C to +70°C, suitable for diverse applications.
Product Details
ZB6CA5
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Square
Type of operator
spring return
Operator profile
Yellow flush, unmarked
CAD overall width
0.7 in (18 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.3 in (33 mm)
Net Weight
0.035 lb(US) (0.016 kg)
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94
Standards
JIS C 852<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-5<br />JIS C8201-5-1<br />UL 508<br />EN/IEC 60947-1<br />JIS C8201-1
Product Certifications
GOST<br />CCC<br />CSA<br />UL
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
