Product Model

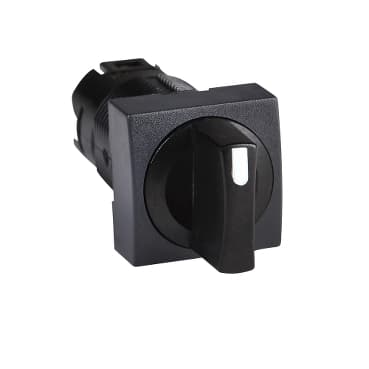

ZB6CD25
Selling Points
- 1High-Quality Construction: Made from durable monolithic plastic for long-lasting performance.
- 2Easy Installation: Mounts easily with Ø16mm mounting hole diameter.
- 3Compact Design: Face dimensions are 18x18mm, perfect for space-saving installations.
- 4Operational Stability: Operating temperature range of -40°C to 70°C ensures reliable operation.
- 5Versatile Use: Part of the Harmony XB6 series, suitable for various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6 | Product or Component Type | Head for selector switch |
Device short name | ZB6 | Bezel material | Plastic |
Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Square | Type of operator | To centre spring return |
Operator profile | Black standard handle | Operator position information | 3 positions 45° |
CAD overall width | 0.7 in (18 mm) | CAD overall height | 0.7 in (18 mm) |
CAD overall depth | 1.7 in (43 mm) | Net Weight | 0.040 lb(US) (0.018 kg) |
Protective treatment | TC | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 61140 |
IP degree of protection | IP65 IEC 60529 | NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 |
Standards | UL 508<br />JIS C 852<br />IEC 60947-1<br />IEC 60947-5-5<br />JIS C8201-5-1<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | CCC<br />CSA<br />UL<br />GOST |
Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
