schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB6CD42

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26977

In Stock
Last updated: 2025/4/20
View Specifications

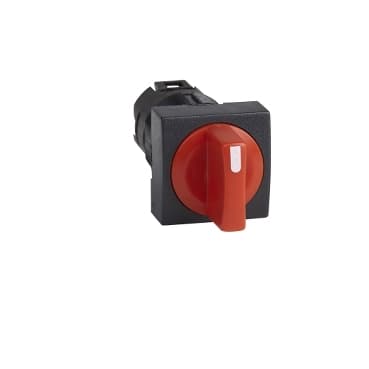

schneider ZB6CD42

Selling Points

  • 1Built with high-quality materials for long-lasting performance.
  • 2Simple mounting process with a self-maintaining head in its cut-out.
  • 3Conforms to IEC 60529, providing protection against solid particles and a good level of protection against water.
  • 4Suitable for various industrial and commercial settings, including control and signaling units.
  • 5Available in different colors and configurations to meet specific needs.
Product Details
ZB6CD42
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for selector switch
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Square
Type of operator
stay put
Operator profile
Red standard handle
Operator position information
2 positions 60°
CAD overall width
0.7 in (18 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.7 in (43 mm)
Net Weight
0.040 lb(US) (0.018 kg)
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94
Standards
EN/IEC 60947-5-5<br />JIS C 852<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />UL 508<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />JIS C8201-1
Product Certifications
CSA<br />GOST<br />UL<br />CCC
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
