schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB6CE4

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

27020

In Stock
Last updated: 2025/4/20
View Specifications

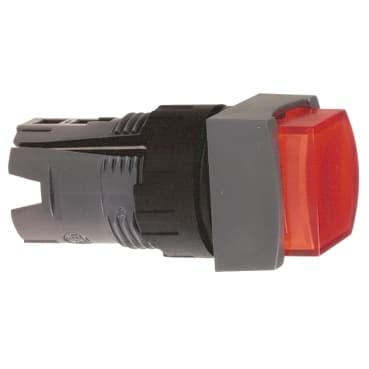

schneider ZB6CE4

Selling Points

  • 1Integral LED Illumination: The ZB6CE4 features an integral LED for enhanced visibility in dark environments.
  • 2Spring Return Mechanism: Equipped with a spring return mechanism for reliable operation and easy reset.
  • 3Durable Construction: Made from high-quality materials, ensuring long-lasting performance and resistance to environmental factors.
  • 4Versatile Voltage Range: Compatible with 12V to 24V, making it versatile for various electrical systems.
  • 5Compliance with Safety Standards: Meets or exceeds international safety standards, including IEC 60947-1 and IEC 60529, ensuring safe operation.
Product Details
ZB6CE4
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for illuminated push-button
Product Compatibility
Integral LED
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Square
Type of operator
spring return
Operator profile
Red projecting, unmarked
CAD overall width
0.7 in (18 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.4 in (36 mm)
Net Weight
0.035 lb(US) (0.016 kg)
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94<br />NEMA 13 CSA C22.2 No 94
Standards
JIS C8201-5-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />UL 508<br />EN/IEC 60947-1<br />JIS C 852<br />JIS C8201-1
Product Certifications
GOST<br />CSA<br />CCC<br />UL
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
