ZB6CF1

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

27025

In Stock
Last updated: 2025/4/20
View Specifications

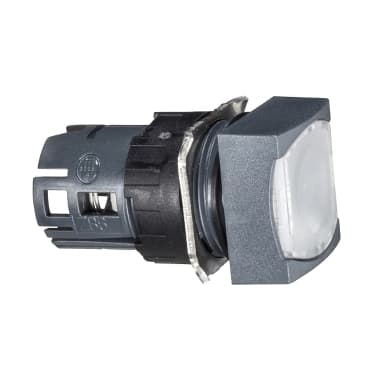

schneider ZB6CF1

Selling Points

  • 1High-Quality Illumination: Features an integral LED for clear and consistent lighting.
  • 2Durable Design: Built with plastic bezels and designed to withstand 300,000 operating cycles.
  • 3Compact Size: Measures Ø 16 mm, ideal for restricted surface area applications.
  • 4Environmental Compliance: Part of Schneider Electric's Green Premium products, ensuring compliance with latest regulations and transparency on environmental impacts.
  • 5Versatile Compatibility: Compatible with Harmony XB6 range, suitable for various control panels and surveillance rooms.
Product Details
ZB6CF1
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for illuminated push-button
Product Compatibility
Integral LED
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Square
Type of operator
latching
Operator profile
White flush, unmarked
CAD overall width
0.7 in (18 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.3 in (33 mm)
Net Weight
0.035 lb(US) (0.016 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
300000 cycles
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94
Standards
JIS C8201-5-1<br />EN/IEC 60947-5-5<br />UL 508<br />JIS C 852<br />EN/IEC 60947-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C8201-1
Product Certifications
GOST<br />UL<br />CSA<br />CCC
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
