schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB6CF3

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

27026

In Stock
Last updated: 2025/4/20
View Specifications

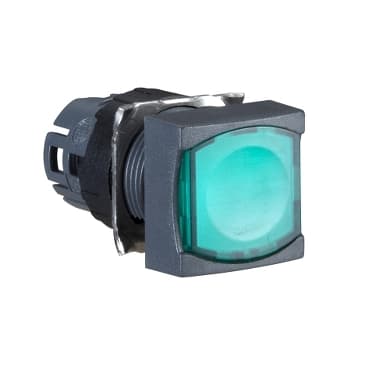

schneider ZB6CF3

Selling Points

  • 1IP65 Protection: Designed for use in all types of applications with high protection against dust and water.
  • 2Integral LED: Equipped with an integral LED for illuminated push buttons, enhancing visibility.
  • 3Latching Mechanism: Features a latching mechanism for secure operation.
  • 4Green Premium Certification: Compliant with Green Premium standards, ensuring environmental sustainability.
  • 5Wide Compatibility: Compatible with various applications and easy to mount in 16mm diameter holes.
Product Details
ZB6CF3
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for illuminated push-button
Product Compatibility
Integral LED
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Square
Type of operator
latching
Operator profile
Green flush, unmarked
CAD overall width
0.7 in (18 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.3 in (33 mm)
Net Weight
0.035 lb(US) (0.016 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
300000 cycles
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94
Standards
EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />JIS C8201-5-1<br />UL 508<br />JIS C 852<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C8201-1
Product Certifications
UL<br />CCC<br />CSA<br />GOST
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
