ZB6CF9

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

27030

In Stock
Last updated: 2025/4/20
View Specifications

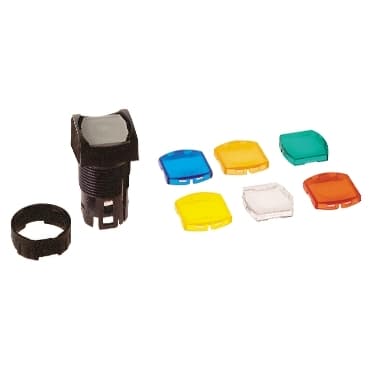

schneider ZB6CF9

Selling Points

  • 1High Durability: Withstands 300,000 operating cycles and resistant to high pressure washers.
  • 2IP65 Protection: Ensures reliable operation in harsh environments, conforming to IEC 60529 standards.
  • 3Illuminated Design: Features integral LED for clear visibility, available in 6 color options.
  • 4Versatile Mounting: Compatible with square or circular heads, suitable for various panel cut-outs.
  • 5Mechanical Reliability: Conforms to IEC 60947-5-4 standards, ensuring high electrical reliability with a failure rate of 10^-8.
Product Details
ZB6CF9
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for illuminated push-button
Product Compatibility
Integral LED
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Square
Type of operator
latching
Operator profile
6 colors choice flush, unmarked
Operator additional information
With set of 6 color cap
CAD overall width
0.7 in (18 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.3 in (33 mm)
Net Weight
0.035 lb(US) (0.016 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
300000 cycles
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94
Standards
EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C 852<br />EN/IEC 60947-1<br />UL 508<br />JIS C8201-5-1<br />JIS C8201-1
Product Certifications
CSA<br />GOST<br />CCC<br />UL
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
