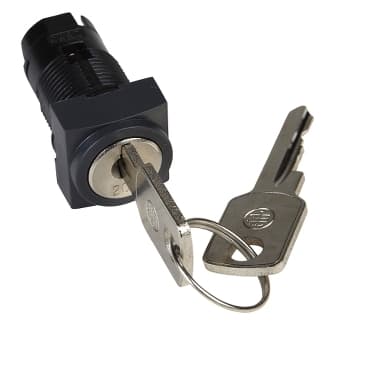

Product Model
ZB6CGS
Selling Points
- 1The ZB6CGC Harmony Selector Switch Head offers dependable control and signaling applications.
- 2Ensures consistent operation with its 2-position stay put mechanism.
- 3Constructed from durable plastic for long-lasting performance.
- 4Sleek and professional black color design.
- 5Meets ROHS, UL 508, and CSA C22.2 No. standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6 | Product or Component Type | Head for key selector switch |
Device short name | ZB6 | Bezel material | Plastic |
Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Square | Type of operator | Right to centre spring return |
Operator profile | Black key switch | Operator position information | 3 positions |
Type of Keylock | Key 200 | Key withdrawal position | Left-hand and center |
CAD overall width | 0.7 in (18 mm) | CAD overall height | 0.7 in (18 mm) |
CAD overall depth | 2.2 in (55 mm) | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 | Standards | IEC 60947-1<br />JIS C 852<br />CSA C22.2 No 14<br />IEC 60947-5-5<br />JIS C8201-5-1<br />IEC 60947-5-1<br />UL 508<br />JIS C8201-1 |
Product Certifications | CSA<br />GOST<br />CCC<br />UL | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
