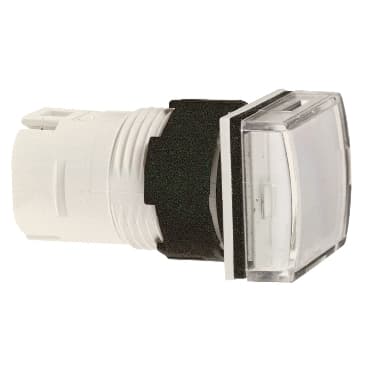

Product Model
ZB6CV1
Selling Points
- 1Made from high-quality plastic with IP65 protection, ensuring long-lasting performance in harsh environments.
- 2Measuring 18 mm x 33 mm x 18 mm, ideal for space-constrained installations.
- 3Quick Connect termination style for effortless setup and integration.
- 4Available in an illuminated version, enhancing visibility in dark environments.
- 5Lead-free and RoHS compliant, meeting stringent environmental standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6 | Product or Component Type | Head for pilot light |
Product Compatibility | Integral LED | Device short name | ZB6 |
Bezel material | Plastic | Mounting diameter | 0.6 in (16 mm) |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Square |
cap/operator or lens colour | White | CAD overall width | 0.7 in (18 mm) |
CAD overall height | 0.7 in (18 mm) | CAD overall depth | 1.3 in (33 mm) |
Net Weight | 0.033 lb(US) (0.015 kg) | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 | Standards | IEC 60947-5-1<br />JIS C 852<br />CSA C22.2 No 14<br />UL 508<br />JIS C 4520<br />IEC 60947-5-5<br />IEC 60947-1 |
Product Certifications | CCC<br />UL<br />GOST<br />CSA | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
