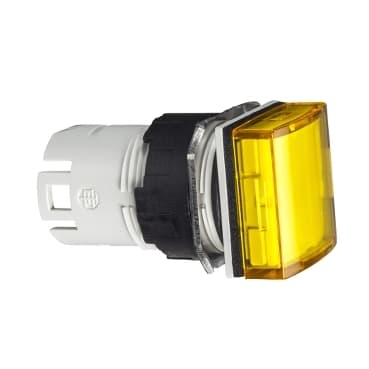

Schneider ZB6CV5 Pushbutton Switches - High-Quality Illuminated Switches

Selling Points

1High-Quality Illuminated Switches: The ZB6CV5 offers bright, reliable illumination for enhanced visibility.
2Lead-Free and RoHS Compliant: Ensures environmental safety with lead-free and RoHS compliant materials.
3Compact Design: Suitable for applications where space is restricted, with a square body and quick connect termination.
4Durable Construction: Made from high-quality plastic for long-lasting performance.
5Versatile Applications: Ideal for industrial control panels, building surveillance rooms, and medical instrumentation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Harmony XB6	Product or Component Type	Head for pilot light
Product Compatibility	Integral LED	Device short name	ZB6
Bezel material	Plastic	Mounting diameter	0.6 in (16 mm)
Sale per indivisible quantity	1	Shape of signaling unit head	Square
cap/operator or lens colour	Yellow	CAD overall width	0.7 in (18 mm)
CAD overall height	0.7 in (18 mm)	CAD overall depth	1.3 in (33 mm)
Net Weight	0.033 lb(US) (0.015 kg)	Protective treatment	TC
Ambient Air Temperature for Storage	-40…158 °F (-40…70 °C)	Ambient Air Temperature for Operation	-13…158 °F (-25…70 °C)
Electrical shock protection class	Class II IEC 61140	IP degree of protection	IP65 IEC 60529
NEMA degree of protection	NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94	Standards	IEC 60947-1<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />JIS C 852<br />IEC 60947-5-5<br />JIS C 4520<br />UL 508
Product Certifications	UL<br />CCC<br />GOST<br />CSA	Vibration resistance	+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
