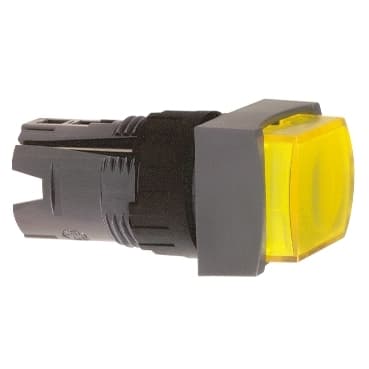

schneider ZB6DE5

Selling Points

  • 1High-Quality Illumination: The ZB6DE5 features an integral LED for clear visibility in any environment.
  • 2Durable Construction: Made from monolithic plastic with a mounting diameter of 16 mm, ensuring robust performance.
  • 3Spring Return Mechanism: Designed for easy operation with a spring return mechanism, reducing wear and tear.
  • 4IP65 Protection: Offers excellent protection against dust and water, making it ideal for harsh industrial settings.
  • 5Versatile Compatibility: Compatible with various mounting options and electrical specifications, including 12V to 24V operation.
Product Details
ZB6DE5
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for illuminated push-button
Product Compatibility
Integral LED
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
Type of operator
spring return
Operator profile
Yellow projecting, unmarked
CAD overall width
0.9 in (24 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.4 in (36 mm)
Net Weight
0.035 lb(US) (0.016 kg)
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94<br />NEMA 13 CSA C22.2 No 94
Standards
CSA C22.2 No 14<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-1<br />UL 508<br />JIS C 852<br />JIS C8201-1
Product Certifications
GOST<br />UL<br />CSA<br />CCC
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
