Product Model

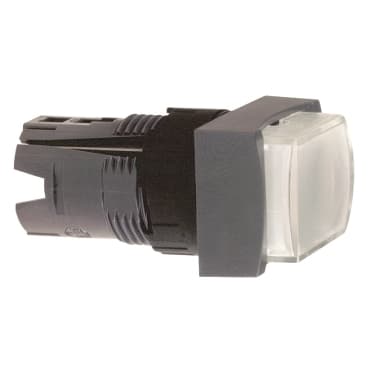

ZB6DE9
Selling Points
- 1Made from durable plastic with a flush pushbutton head.
- 2Ensures consistent operation in a wide temperature range (-40°C to 158°C).
- 3Compatible with various voltage ranges (24V, 120V, 230V) and LED illumination.
- 4Meets Class II electrical shock protection standards and IP65 degree of protection.
- 5Resistant to vibrations and shocks, with a mechanical durability of up to 2 million operating cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6 | Product or Component Type | Head for illuminated push-button |
Product Compatibility | Integral LED | Device short name | ZB6 |
Bezel material | Plastic | Mounting diameter | 0.6 in (16 mm) |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
Type of operator | spring return | Operator profile | 6 colors choice projecting, unmarked |
Operator additional information | Set of 6 color caps | CAD overall width | 0.9 in (24 mm) |
CAD overall height | 0.7 in (18 mm) | CAD overall depth | 1.4 in (36 mm) |
Net Weight | 0.035 lb(US) (0.016 kg) | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94<br />NEMA 13 CSA C22.2 No 94 | Standards | EN/IEC 60947-5-5<br />EN/IEC 60947-5-1<br />UL 508<br />JIS C 852<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />JIS C8201-1 |
Product Certifications | GOST<br />CCC<br />CSA<br />UL | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
