Product Model
ZB6DP2
Selling Points
- 1High-Quality Construction: Made from durable plastic with a rectangular head design.
- 2IP65 Protection: Ensures reliable operation in harsh environments.
- 3Mechanical Durability: Withstands 1,000,000 cycles of mechanical stress.
- 4Versatile Compatibility: Compatible with Ø 6.35 mm shafts, ideal for various applications.
- 5Comprehensive Certifications: Meets standards like IEC 60529, UL 508, and CSA C22.2 No 94.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

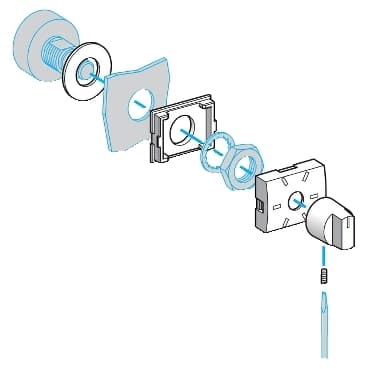

Range of Product | Harmony XB6 | Product or Component Type | Head + mounting base for potentiometer |
Device short name | ZB6 | Bezel material | Plastic |
Mounting diameter | 0.6 in (16 mm) | Product Compatibility | For use with Ø 6.35 mm shaft |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
Operator profile | handle, with white) | Net Weight | 0.071 lb(US) (0.032 kg) |
Mechanical durability | 1000000 cycles | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class II | IP degree of protection | IP65 IEC 60529 |
NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 | Standards | JIS C 852<br />UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />JIS C8201-1 |
Product Certifications | CCC<br />UL<br />CSA<br />GOST | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
